Product Details:
|
| Name: | Excavator Long Reach Boom Arm | Application: | Crawler Excavator |
|---|---|---|---|
| Total Length: | 18meters | Boom Length: | 10meters |
| Arm Length: | 8meters | Bucket: | GP Bucket |
| Boom Cylinder: | Use Original | Arm Cylinder: | Use Original |
| Bucket Cylinder: | Include | Color: | Customized |
| Warranty: | One Year After Installation | ||
| High Light: | Hign Performance Excavator Boom Arm,Crawler Excavator Boom Arm,Long Reach Excavator Boom Arm |
||

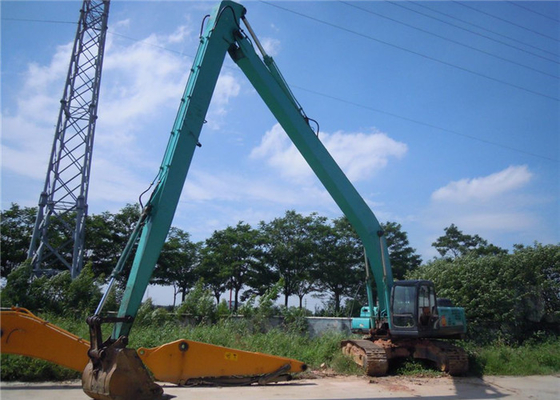

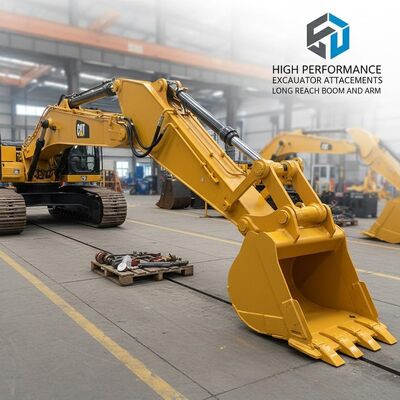

Long Reach Boom And Arm For Crawler Excavator Hign Performance Excavator Front Atttchments
Products Description:
-Long reach boom have large workrange,very popular in dredging river,dredging port,port construction,subway construction.
-High efficiency and supply security for excavator drivers.
-We can customize all kinds of long reach boom according to customer requirements.
Features:
1.Applicable for all model of excavator.
2.Standard supply include:bucket,linkage,bucket cylinder, oil pipe/hose,pins,lubricating system,etc.
3.Many different material such as Q345B,Q690D,Weldox are optional to suit to your application.
4.Big boom can be two jointed pcs to make it fittable into container to save shipping cost.
5.All the seam are 45 degree tapered before welding.
6.Six months warranty.
7.Some parts can be consolidated using thicker plate or overlapping another plate for heavy-duty application.
8.Boom cylinder and arm cylinder can also be supplied if customer want.
9.Extra pipeline can be added to suit to some extra application.
10.Biggest long boom we have done is 32m long boom for Hitachi EX3500.
Product Parameters:
| Model | LR120 | R200-1 | LR200-2 | LR300 | LR350-1 | R350-2 | LR450 |
| Total length(mm) | 13000 | 15380 | 18000 | 18000 | 20000 | 22000 | 24000 |
| Total self weight(kg) | 3000 | 4150 | 4400 | 5200 | 6000 | 6500 | 7000 |
| Max reach(mm) | 12500 | 15100 | 17600 | 17600 | 19600 | 21600 | 23600 |
| Max cut depth(mm) | 9000 | 11340 | 12200 | 12200 | 14500 | 16100 | 18000 |
| Max cut height(mm) | 11300 | 12510 | 13500 | 13720 | 14920 | 16100 | 17300 |
| Folding height(mm) | 900 | 2980 | 3040 | 3210 | 3210 | 3400 | 3400 |
| Bucket volume(㎥) | 0.3 | 0.6 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
| Excavator tonnage(ton) | 10-15 | 16-22 | 20-24 | 25-33 | 30-36 | 30-40 | 40-50 |

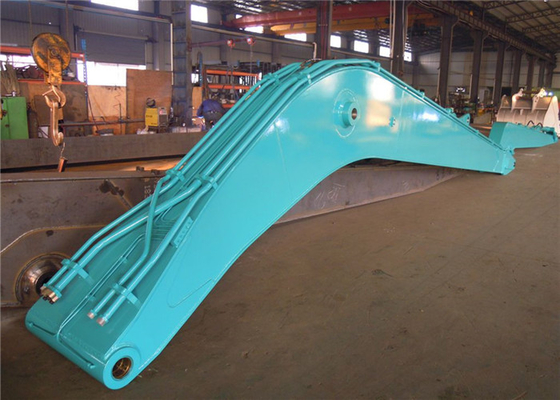

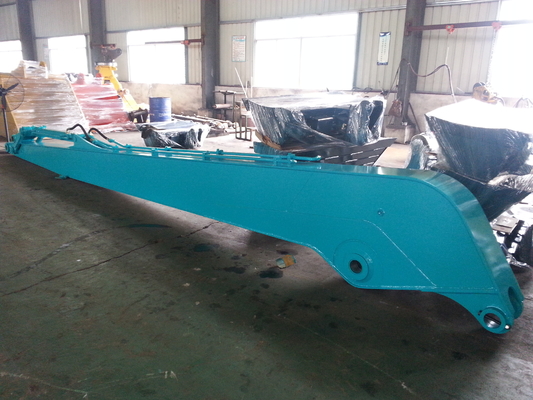

Details Images:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time for long reach boom?
A: 20 days for 1 kit,30 days for one container(3 kits)
Q: Do you provide parts for maintainance?
A: Yes, we will supply you explode parts list,if you need related parts,we can supply.
Q: What is your terms of payment ?
30% T/T in advance ,balance before shipment.
